제품 상세 정보:
|
| 주택 자료: | 젤이 없는 PC(UL 94v-0) | 접촉 재료: | 주석 도금 인청동 |
|---|---|---|---|
| 와이어 삽입력: | 일반 45N | 와이어 인발력: | 일반 40N |
| 최대 절연 직경: | 1.65 밀리미터 | 케이블 스타일 및 와이어 직경: | 0.32~0.65mm(28~22AWG) |
| 강조하다: | 25 pair fiber optic splicing module,gel-free fiber optic splice module,1.65mm diameter fiber optic connector |
||

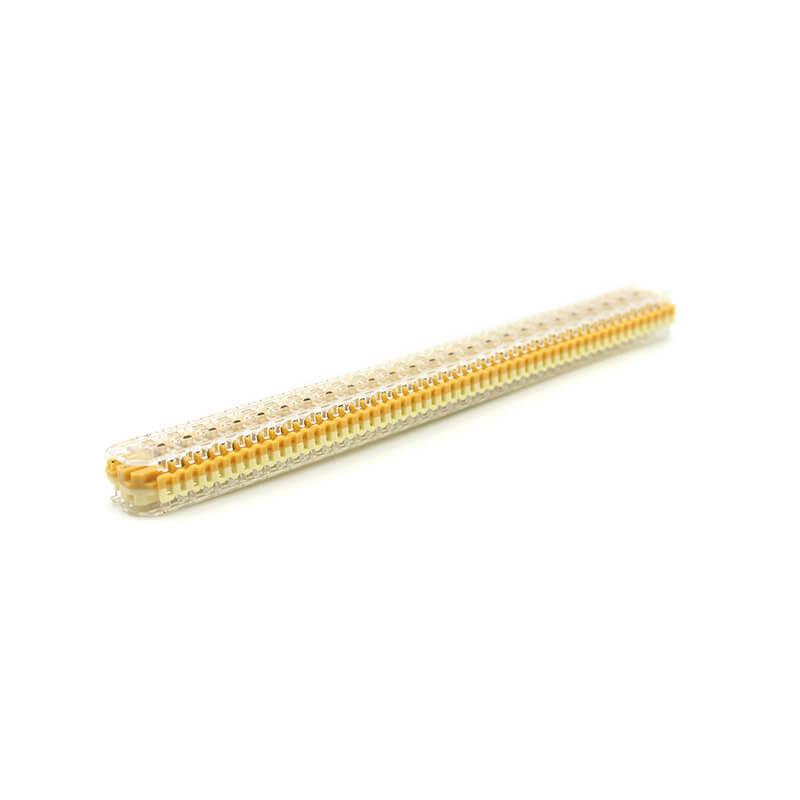

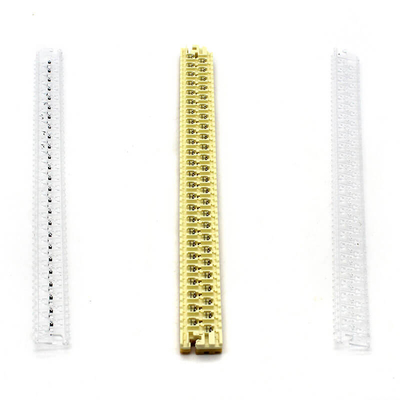

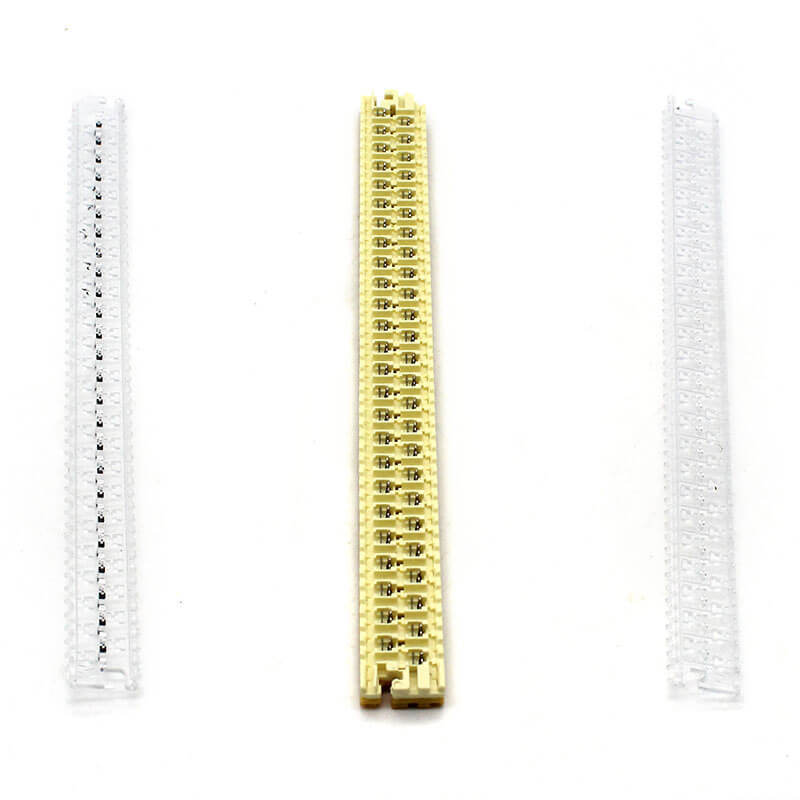

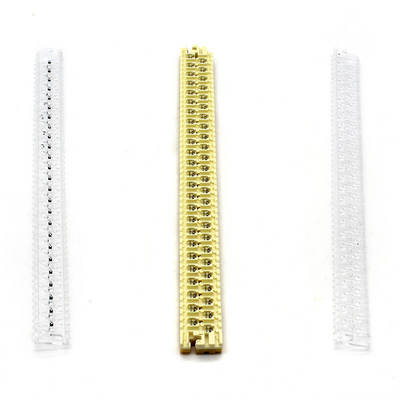

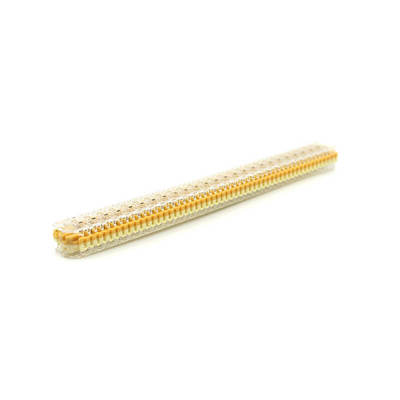

The 25-Pair Splicing Module without Gel is designed for connecting all plastic communication cables (diameter 0.32 - 0.65mm) through direct, bridge, and multiple connections. Widely used in communication circuits, it features a tuning fork type and sheet joint design for reliable connections. The clear cover module allows for easy pair identification and troubleshooting.
| Housing Material | PC (UL 94v-0) without gel | Contacts Material | Tinned Phosphor Bronze |
|---|---|---|---|
| Wire Insertion Force | 45N Typical | Wire Pull-Out Force | 40N Typical |
| Max Insulation Diameter | 1.65 mm | Cable Style and Wire Diameter | 0.32-0.65 mm (28-22 AWG) |
| Storage Temperature | -40℃～ 120℃ | Operating Temperature | -30℃～ 80℃ |
| Relative Humidity | <90% (@20℃) | Atmospheric Pressure | 70 Kpa～106 KPa |
| Insulation Resistance | R≥10000M Ohm | Contact Resistance Vary | 1m Ohm |
| Constant Current | 5KA 8/20u Sec | Surge Current | 10KA 8/20u Sec |
