Outdoor 2 Inlet 2 Out 144 Cores IP65 Fiber Optic Joint Closure for Aerial Buried and Pole Mount Applications

기본 정보
원래 장소: 중국
브랜드 이름: DOWELL
최소 주문 수량: 200pcs
배달 시간: 7~15일
지불 조건: 티/티
공급 능력: 7 일 당 1000pc
상세 정보
스카치 테이프: 라벨링, 임시 고정 에틸 알코올: 청소
거즈: 청소 섬유 커터: 섬유 절단
섬유 스트리퍼: 광섬유 케이블의 보호 코팅을 벗겨냅니다. 콤보 도구: FOSC 조립
강조하다:

2 Inlet 2 Out Fiber Optic Joint Closure

,

144 Cores Fiber Optic Splice Closure

,

IP65 Fiber Optic Junction Box


제품 설명

Outdoor 2 Inlet 2 Out Fiber Optic Joint Closure 144 Cores Solutions
A Fiber Optical Closure is designed for outdoor connections between optical distribution cables and indoor optical cables. Our Fiber Optical Splice Junction Box is suitable for aerial, duct, and direct buried applications, connecting to optical switches through fiber jumpers to protect against environmental degradation from heat, cold, light, oxygen, and microorganisms. The robust construction provides excellent mechanical strength, with a solid shell that withstands extreme environmental conditions while offering flame retardant and waterproof protection against vibration, impact, cable tension, and twisting.
Specification
Protection level IP65
Main material ABS, PP
Application Outdoor Aerial Dome, Buried, Pole Mount Type Outdoor
Atmospheric pressure 70kPa~106kPa
Insulation resistance >2*10MΩ/500V(pc)
Tensile strength >1000N

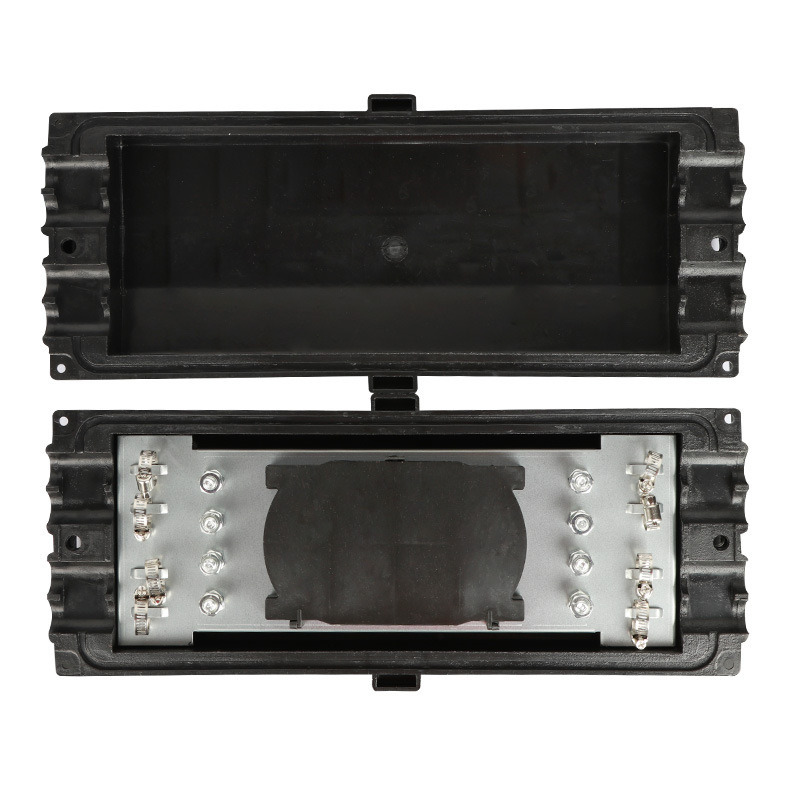

Outdoor 2 Inlet 2 Out 144 Cores IP65 Fiber Optic Joint Closure for Aerial Buried and Pole Mount Applications 0

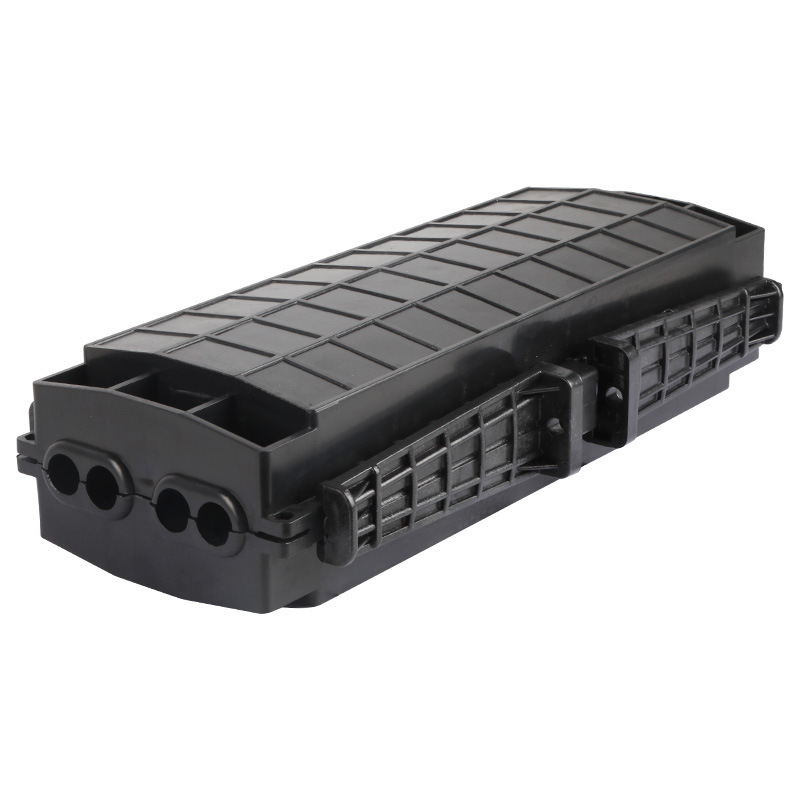

Outdoor 2 Inlet 2 Out 144 Cores IP65 Fiber Optic Joint Closure for Aerial Buried and Pole Mount Applications 1
Application
1.1 Underground Installation
Designed to resist moisture, soil pressure, and corrosion, ensuring stable fiber connections in direct-buried optical cable projects.
1.2 Aerial Installation
Lightweight and wind-resistant design for utility pole mounting, with excellent sealing to withstand rain, snow, and UV radiation.
1.3 Duct Installation
Fitted in underground ducts to accommodate fiber splicing and management while preventing dust and moisture intrusion.
1.4 Indoor/Outdoor Transition
Protects connection points between indoor and outdoor optical cables from environmental changes and mechanical damage.
1.5 Fiber Distribution Points
Serves as intermediate nodes in FTTH (Fiber to the Home) networks, enabling fiber branching and connection for end-user access.
