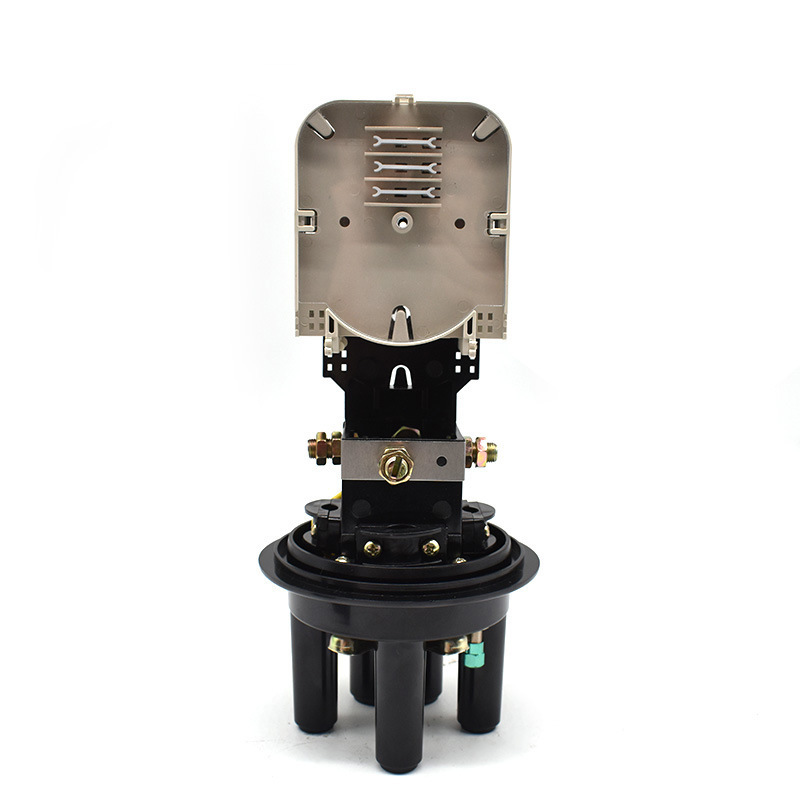

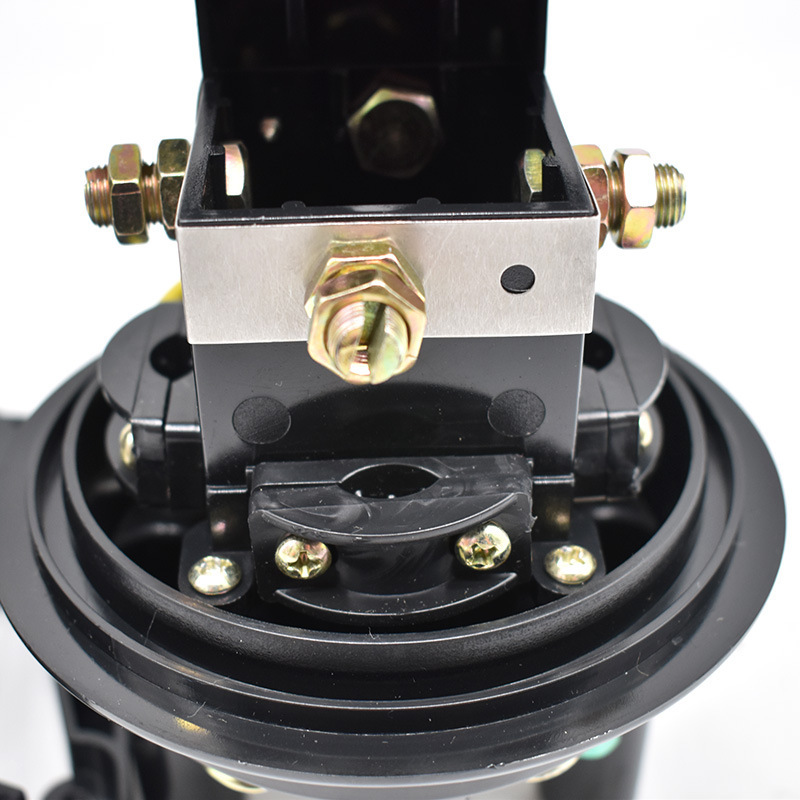

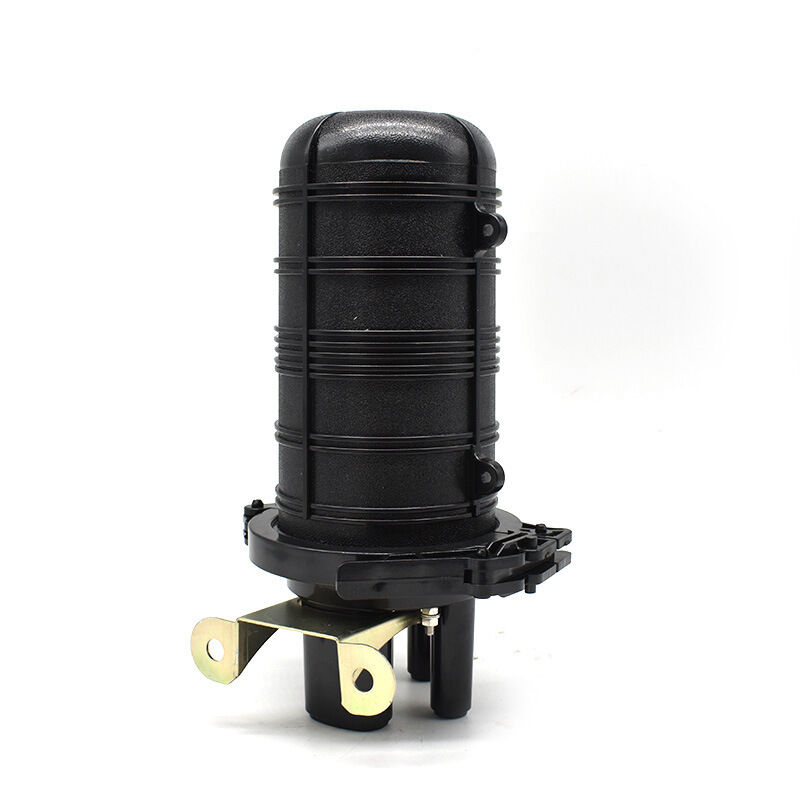

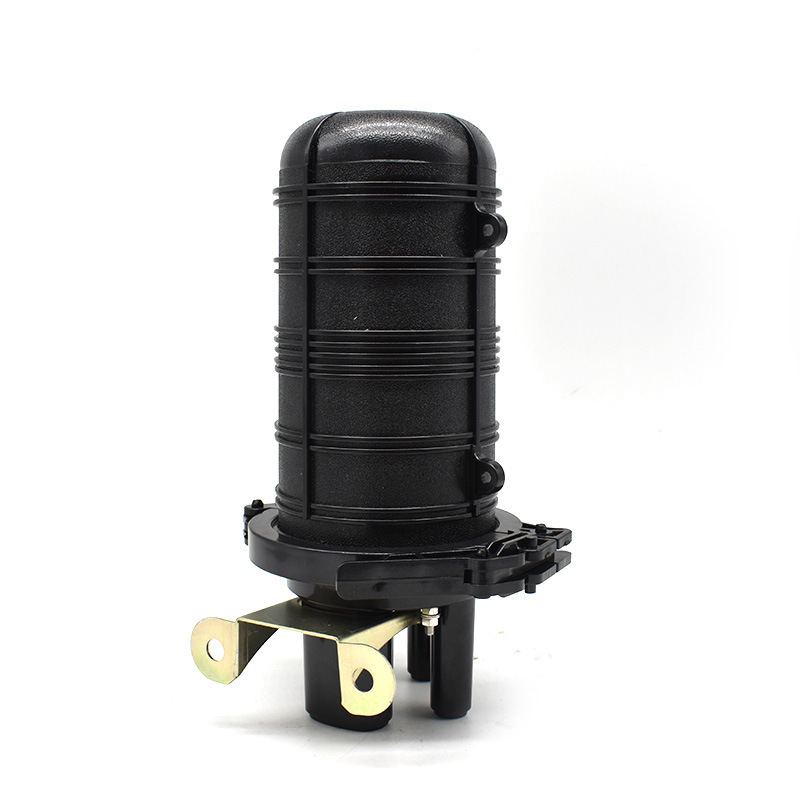

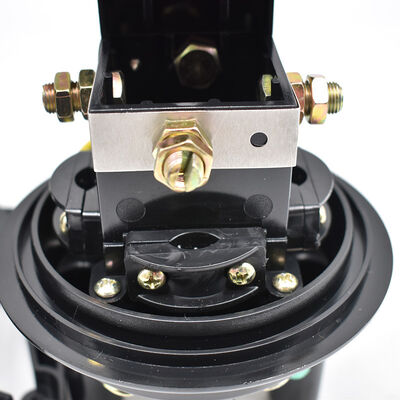

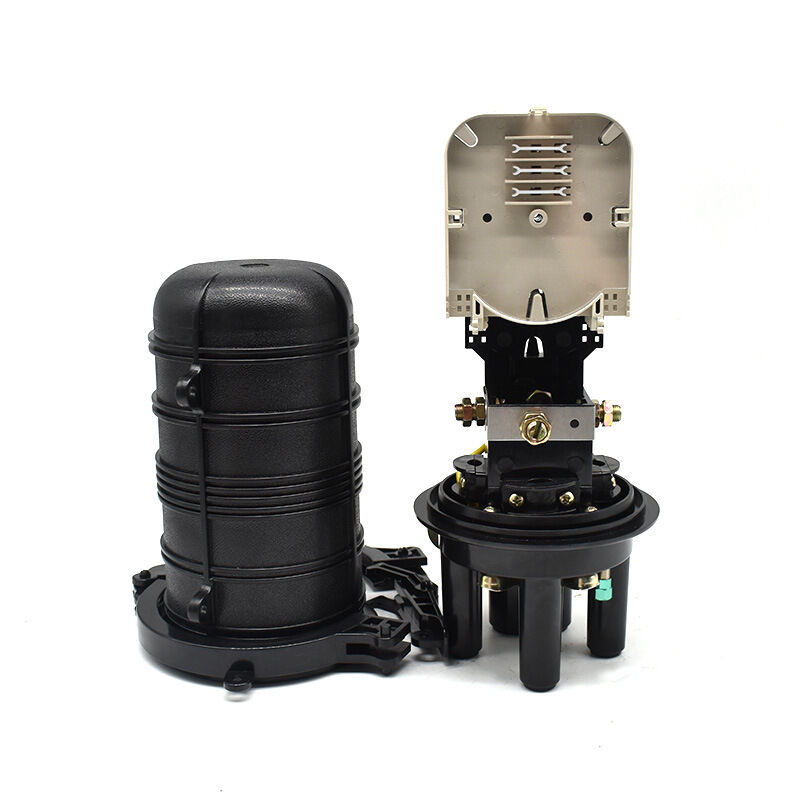

12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure for Outdoor Splice Protection

12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure for Outdoor Splice Protection
12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure for Outdoor Splice Protection
12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure for Outdoor Splice Protection 12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure for Outdoor Splice Protection 12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure for Outdoor Splice Protection 12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure for Outdoor Splice Protection 12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure for Outdoor Splice Protection

큰 이미지 :  12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure for Outdoor Splice Protection

제품 상세 정보:
원래 장소: 중국
브랜드 이름: DOWELL
결제 및 배송 조건:
최소 주문 수량: 100PCS
배달 시간: 7~15일
지불 조건: 티/티
공급 능력: 7 일 당 1000pc
접촉

12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure for Outdoor Splice Protection

설명
온도: -40 ~ ~+60 ℃ 습기: 95% 이하 (40℃에서)
공기압: 70kPa ~106kPa 재료: PP/ABS/금속
강조하다:

12 Cores Fiber Optic Closure

,

1 In 3 Out Fiber Optic Splice Joint Closure

,

Vertical Heat-Shrink Dome Fiber Optic Closure

12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure
Fiber Optic Splice Joint Closure Dome Types are designed for distributing, splicing, and storing outdoor optical cables entering and exiting from the closure ends. Available in direct connection and splitting connection configurations, these closures are suitable for overhead, pipeline manwell, and embedded installations. Compared to terminal boxes, closures require stricter sealing standards and include sealing rings and air valves for enhanced protection.
Specifications
Temperature -40℃ to +60℃
Humidity ≤95% (at 40℃)
Air Pressure 70kPa to 106kPa
Key Features
  • High-quality engineering plastic casing with excellent anti-corrosion, anti-aging properties, and smooth appearance
  • Reliable mechanical structure resistant to harsh environments and extreme climate changes with IP68 protection rating
  • Compatible with both ribbon type optical cables and common optical cables
  • Booklet-style splice trays with adequate curvature radius (40mm minimum) and fiber winding space
  • Compact design with high capacity and convenient maintenance capabilities
  • Elastic rubber seal rings providing superior sealing and moisture-proof performance
  • Reusable casing with easy operation requiring no special tools, includes air valve for seal verification
12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure for Outdoor Splice Protection 0
Applications
  • Provides comprehensive protection for fiber splice points against environmental factors, particularly water permeation
  • Suitable for aerial installations, cable ducts, direct burial, and pedestal mounting
12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure for Outdoor Splice Protection 1
