| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | DOWELL |
| 모델 번호: | DW-MPO-AT |
| 최소 주문 수량: | 1000개 |
| 배달 시간: | 7~15일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 주당 5000pc |
| 섬유 종류: | 다중 모드(OM1/OM2/OM3/OM4/OM5); 단일 모드(OS2) | 섬유수: | 8, 12, 24(공통); 16, 32, 48, 72(맞춤형) |
|---|---|---|---|
| 삽입 손실: | 0.35dB 이하(MM의 경우 일반); 0.5dB 이하(SM의 경우 일반) | 반사 손실: | UPC: ≥60dB; APC: ≥70dB |
| 작동 온도: | -40' Ｃ ~ +75' Ｃ | 내구성: | ≥500 결합 주기 |
| 강조하다: | OM4 MPO fiber optic adapter,MTP fiber adapter for patch cord,MPO fiber optic adapter with warranty |
||

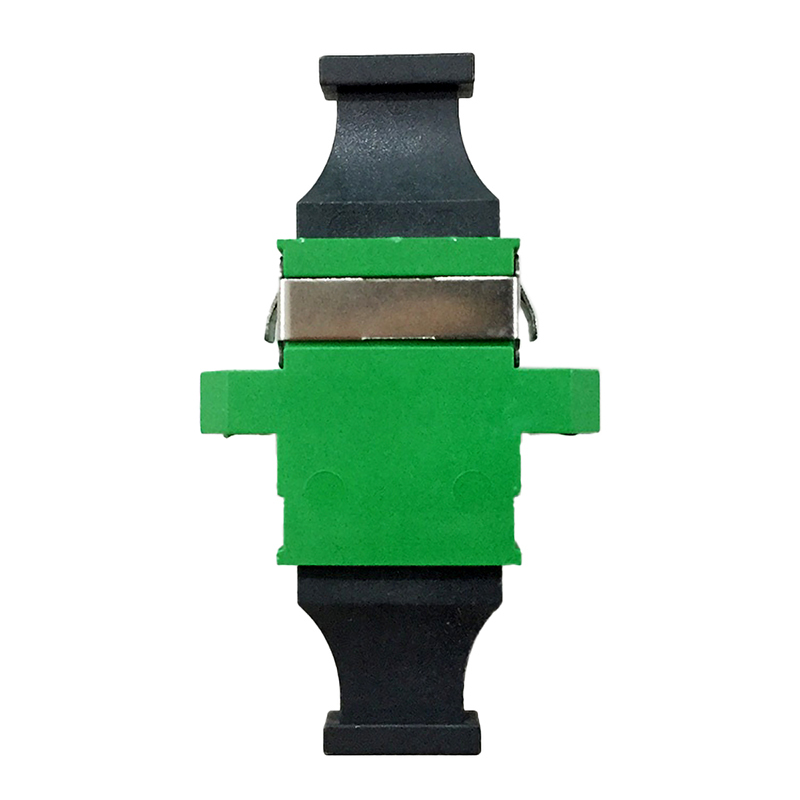

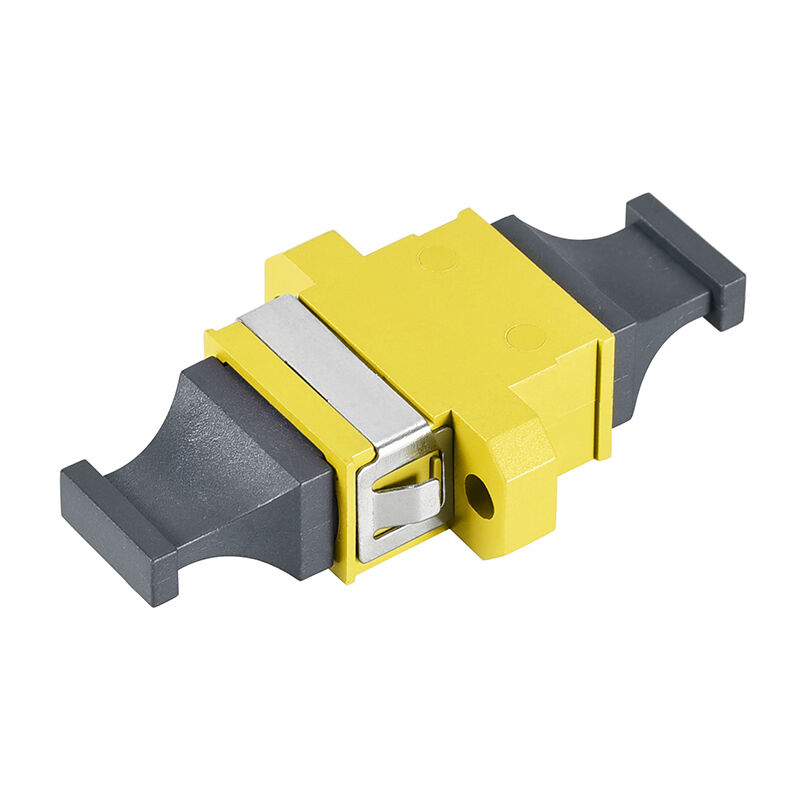

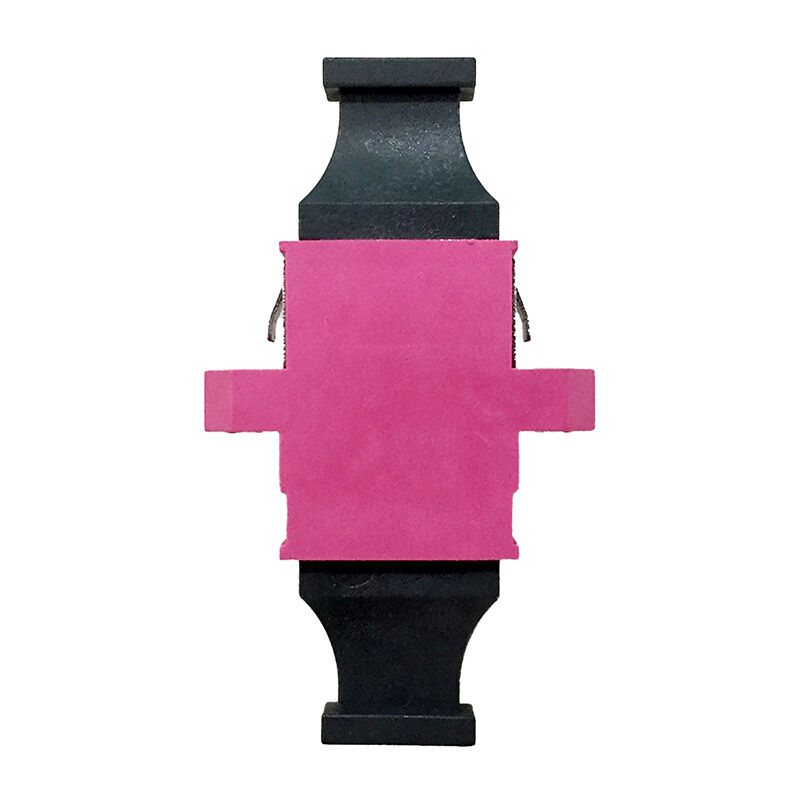

OM4 MPO/MTP Fiber Optic Adapter
The MPO adapter is a fiber optic coupler for use with MPO/MTP connectors . It is intended for keyup to key-down (Type A) multi-fiber configurations . The coupler body is aqua(Available in different colours) which aids in identification of the type of installed fiber in use . The MPO adapter a high-qualityfiber optic coupler for use in a variety of panel layout configurations, and features a full mounting flange for permanent installations . The coupler ships with dual dust caps to minimize dust and debris entering the optical path.
Multi-fiber push on connectors, or MPO Adapter for short, are fiber connectors comprised of multiple optical fibers . While defined as anarray connector having more than 2 fibers, MPO Connectors are typically available with 8, 12 or 24 fibers for common data center and LAN applications .
Specification:
| MPO/MTP | SM standard | SM low loss | MM standard | MM low loss | |
| Insertion Loss | Typical | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Max | 0.70dB | 0.35dB | 0.70dB | 0.35dB | |
| Return Loss | APC≥50dB | ≥25dB | ≥35dB | ||
| UPC≥40dB | |||||
| Repeatability | ≤0 .30 dB (plugging over 500 times) | ||||
| Interchangeability | ≤0 .30 dB (matching with any connector) | ||||
| Vibration | ≤0 .30 dB (10-55 HZ) | ||||
Features:
1.1 One-piece design, small size, high repeatability, to ensure the accuracy of fiber alignment, suitable for installation in high-density environments .
1.2 The stable shrapnel design ensures the stable installation of the adapter.
1.3 The product quality strictly implements international standards, passes various tests, and meets the design requirements of IEC61754-7 and GR-1435, as well as RoHS/REACH and UL94-V0 fire protection requirements .
1.4 This MPO adapter supports 4-72 core optical connector. Customers can customize the logo, long and short ear flanges, and the key position.
Application:
2.1 Base stations of communication systems
2.2 ODF in building computer rooms
2.3 MPO boxes
2.4 Test instruments
FAQ:
1. Q : Are you trading company or manufacturer?
A : 70% of our products we manufactured and 30% do trading for customer service
2. Q : How can you ensure the quality?
A : Good question! We are a one-stop manufacturer. We have complete facilities and over-15- years manufacturing experience to ensure product quality. And we have already passed ISO 9001 Quality Management System.
3. Q : Can you provide samples ? Is it free or extra?
A : Yes, After price confirmation , we could offer the free sample, but the shipping cost need pay for by your side.
4. Q : How long is your delivery time ?
A : In stock: In 7 days; No in stock: 15~20 days, depend on your QTY.
5. Q: Can you do OEM?
A: Yes , we can
6. Q: What is your payment term ?
A: Payment <=4000USD,100% in advance. Payment>= 4000USD, 30% TT in advance, balance before shipment.
7. Q: How we can pay?
A: TT, Western Union , Paypal ,Credit Card and LC
8. Q: Transportation?
A: Transported by DHL, UPS, EMS, Fedex, Air freight, Boat and Train
